| Aveco eGuru Electro Magnetic Series |

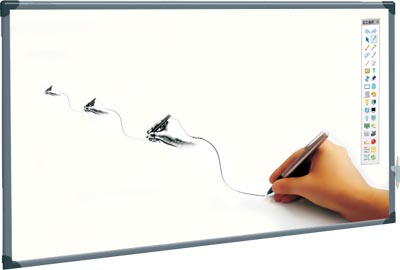

Electromagnetic Interactive Whiteboard |
 |
| AVECO eGuru electromagnetic interactive whiteboard comes with an electromagnetic pen which makes your manipulation more convenient. With the dual buttons, users just simply press them to write, select or move page during the presentations. The aluminum alloy frame and hard surface could fully realize the reliability and durability. |
| |
| Durable Surface With the aluminum alloy frame and XPS board, it helps to avoid distortion greatly. |
Thinner Frame 50mm width in the four sides could increase the effective writing area. |
| Anti-interference No influence of electromagnetisms and rays. |
Humanized manipulation Easy click the electromagnetic pen to imitate the mouse functions. |
|
| |
| KEY FEATURES : |
| Anti-interference of Electromagnetism & Rays |
USB Power Only |
| Support Dual User |
Thinner Frame as 50mm |
| Humanized Electromagnetic Pen |
|
|
| |
| OPTIONAL ACCESSORIES : |
| 2.4G RF Wireless Module |
USB Extender |
| Built-in Speaker |
Shortcut Keys |
| Mobile Stand |
|
|
| AvecoeGuru Software is Delivered as Standard Package : |
| Multiple Language |
Annotate on any files and save |
| 2 electromagnetic pens |
Work Seamlessly with Microsoft Office files |
|
| |
| Operation System : Windows2000,XP,2003,Vista,WIN7,Linux,Mac |
| |
| Sensor Type |
Electromagnetic Induction |
Dimension |
Refer to below |
| Power Supply |
USB power less than 5V/100Am |
Working Temperature |
-20°C to 60°C |
| Accuracy |
<0.05mm |
Working Humidity |
10%-90% |
| Viewing Angle |
170° left and right / 160° up and down |
Data Transmission |
USB cable or wireless module |
| Resolution |
Effective writing resolution above 13304*9800 |
Response speed |
Signal tracking: 5m/s
Processing: >500 dot/s transmission |
| Calibration Technology |
4 points |
Aspect ratio |
4:3, 16:9, 16:10 |
| Electronic Pen |
1*AA battery |
Operating System |
Windows2000,XP,2003,
Vista,WIN7,Linux,Mac |
|
| |
| Model Type |
Overall Dimension(mm) |
Active Size(mm) |
Dimension |
| EM-78 |
1754*1254*36 |
1670*1170 |
4:3 |
| EM-78W |
1874*1144*36 |
1790*1060 |
16:10 |
| EM-85 |
1770*1260*36 |
1710*1200 |
4:3 |
| EM-101 |
2280*1270*36 |
2180*1170 |
16:9 |
|
